T-ECOPRESS

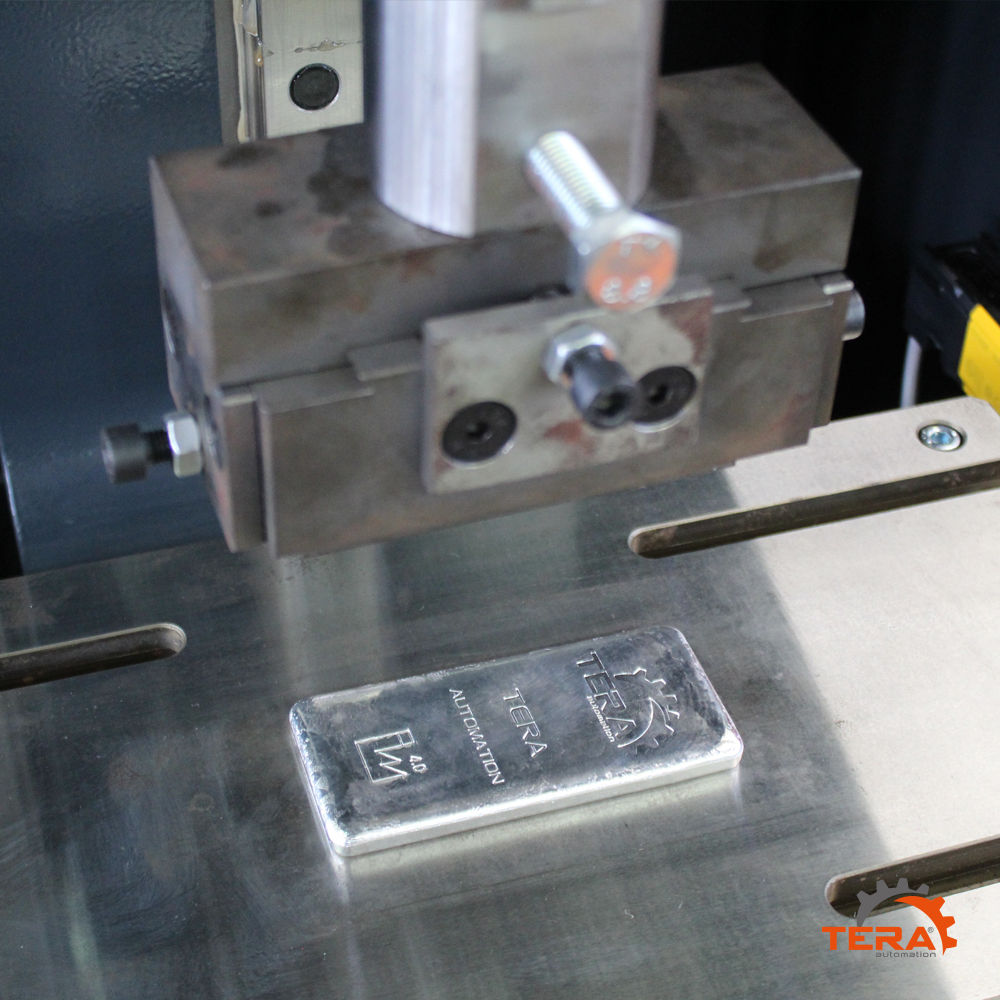

Pneumo-hydraulic press for pressing and marking

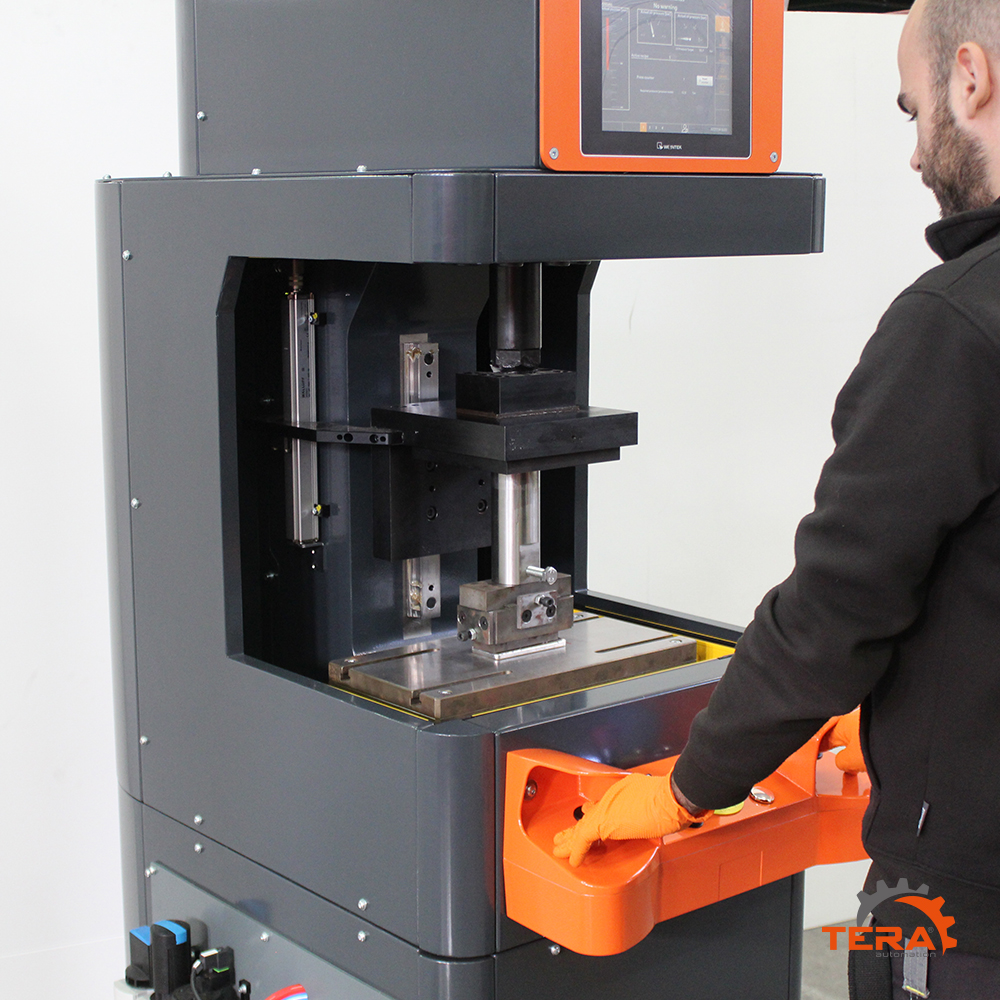

T-Ecopress is an innovative pneumo-hydraulic press designed for pressing and marking, characterised by a C-shaped structure that provides easy access to the working area. Equipped with a touch-screen interface for intuitive management of operating parameters, this machine offers convenience, efficiency and safety. The upper and lower laser barriers, combined with the double-button manual start, ensure a safe working environment, while the absence of a hydraulic power unit reduces running costs and environmental impact.

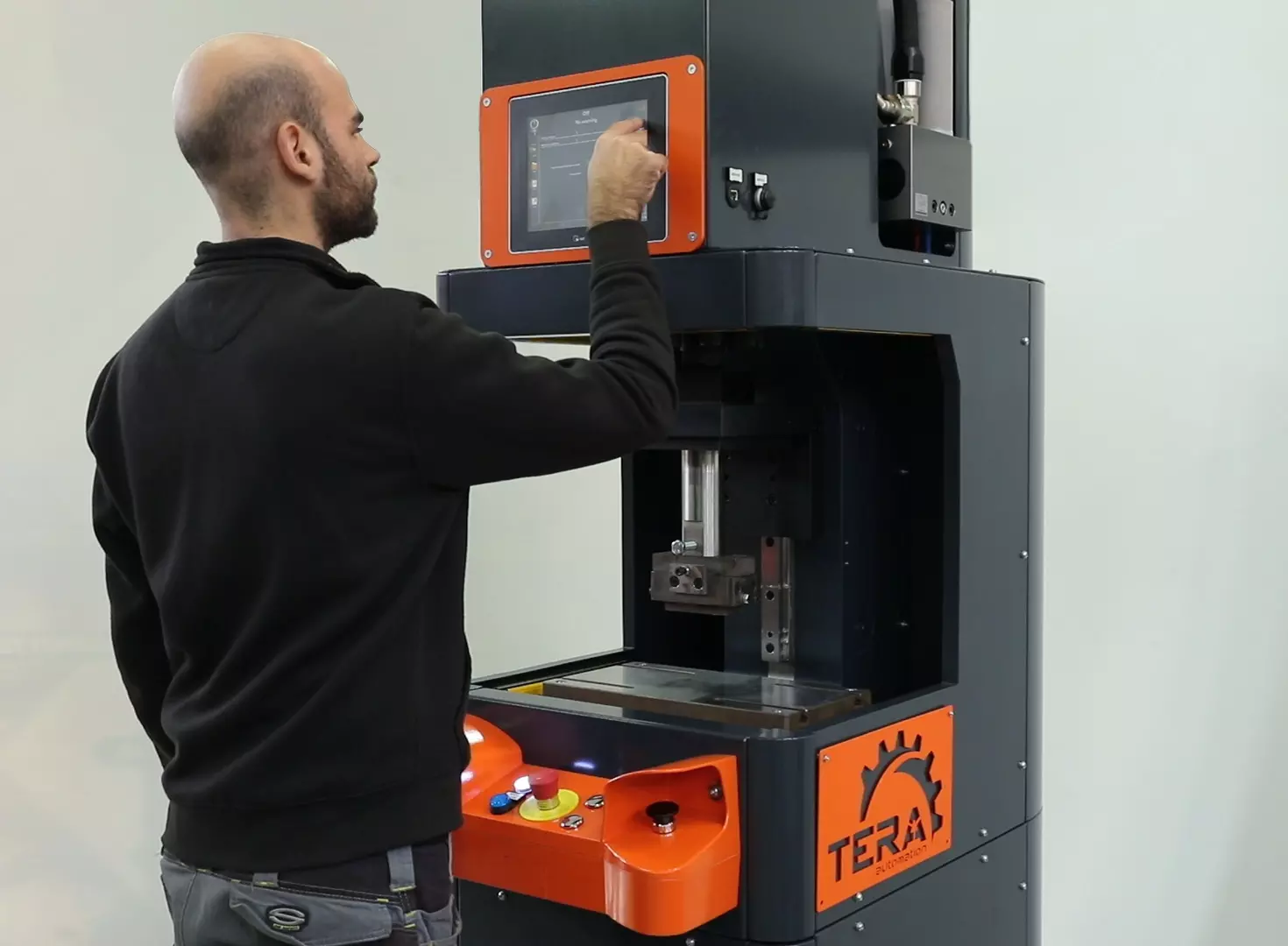

T-ECOPRESS CONSISTS OF:
- press body

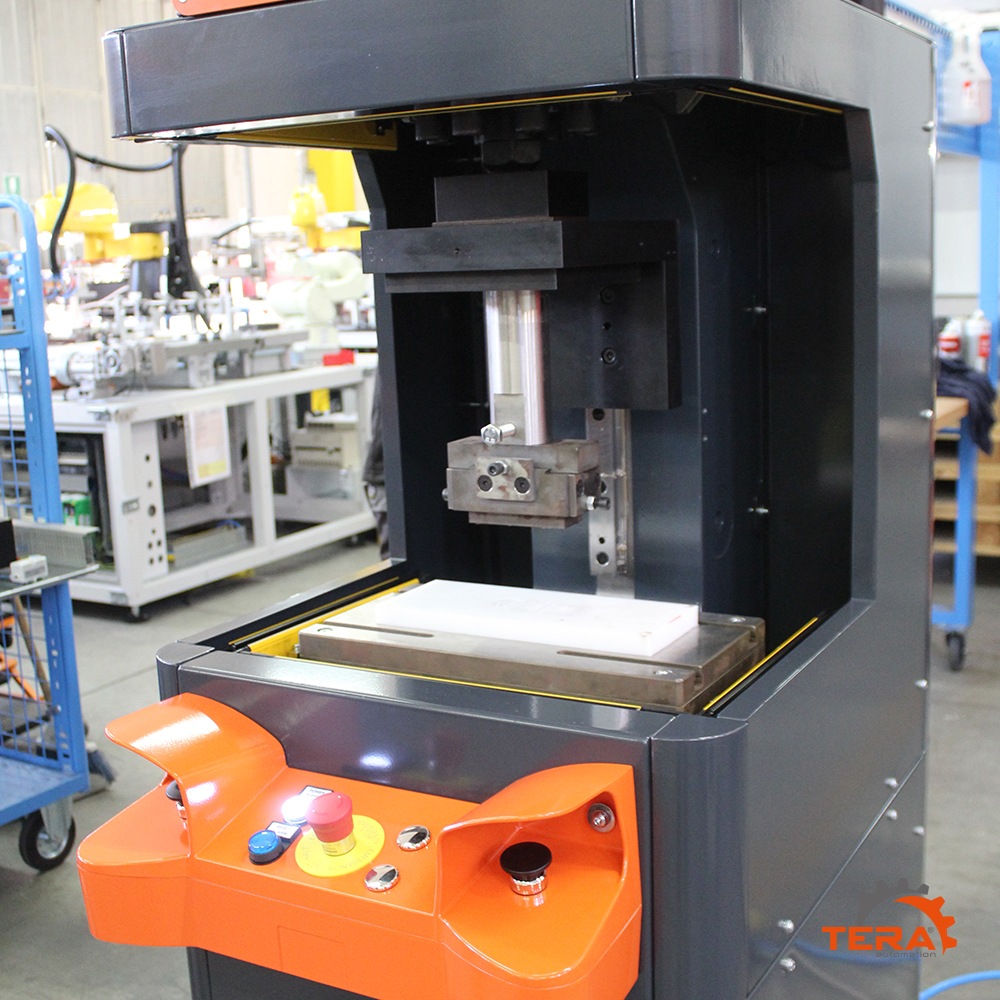

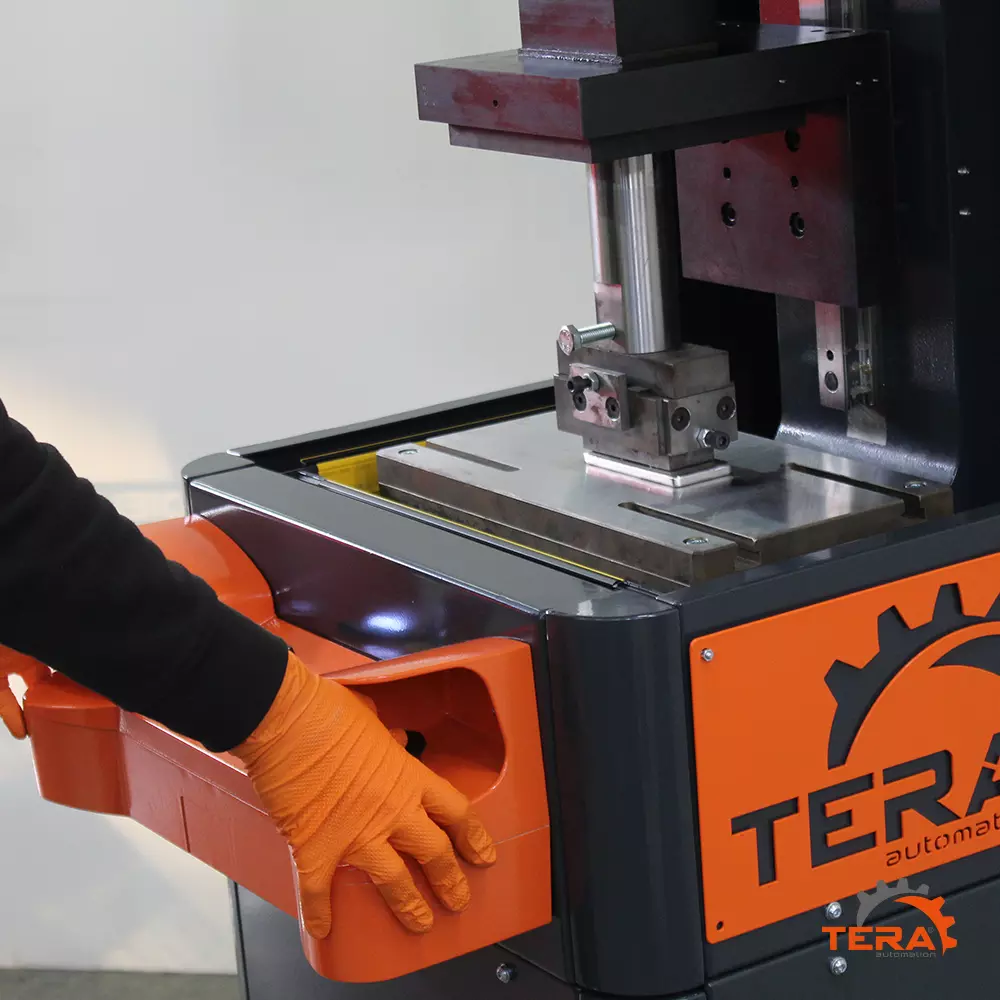

- bimanual control panel

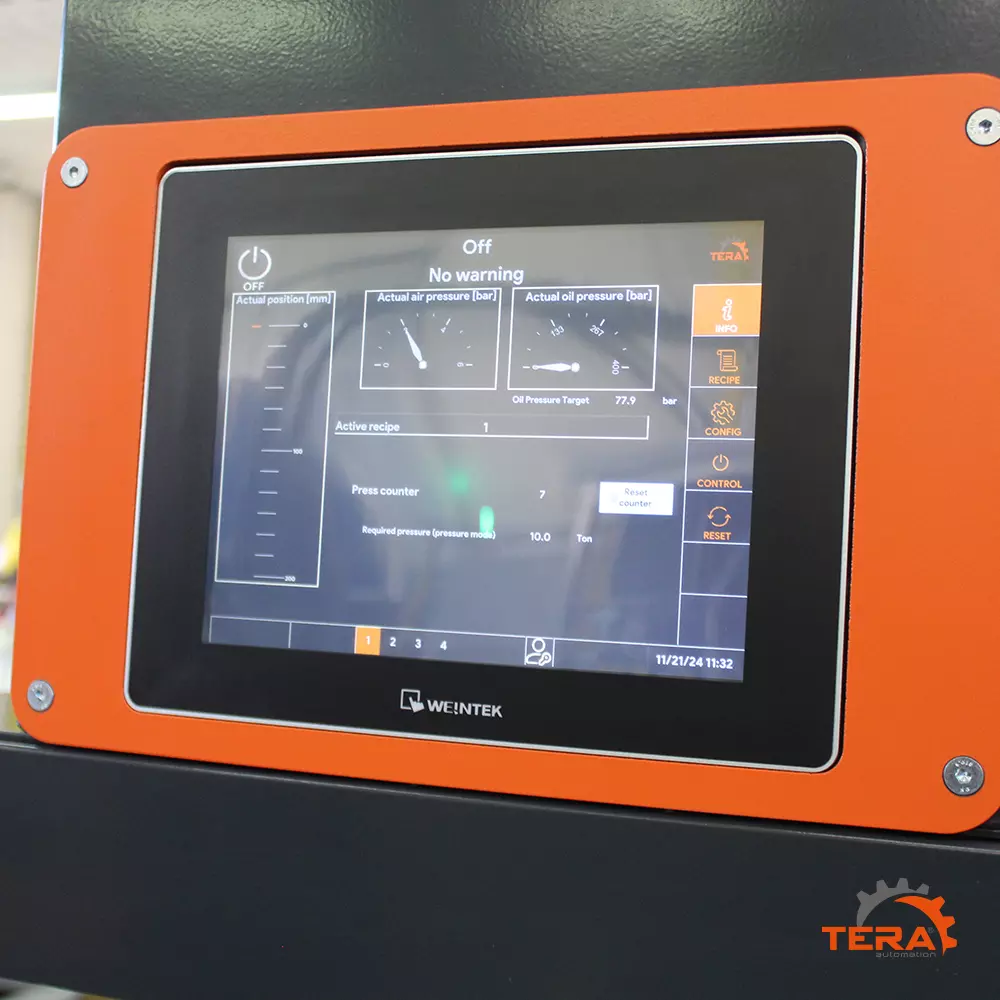

- integrated 9.7’ touchscreen display
- upper and lower safety laser barriers
ADVANTAGES
THE BENEFITS OF AN INNOVATIVE, AUTOMATED SOLUTION:
01
Practicality
Compared to column presses, the C-shaped structure allows easy access to the machine from any direction.
02
Efficiency
Compared to conventional hydraulic presses, the absence of a hydraulic control unit saves on operating costs and significantly reduces the environmental impact.
03
Safety
Presence of laser barrier and manual control system with a double button.
04
Flexibility
Laser safety barriers at both the top and bottom of the working area, allowing the operator an ‘open space’ working area.

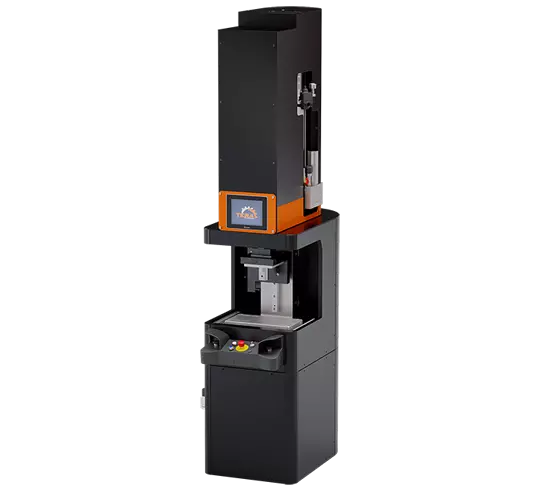

MODELS
| Dimensions | 601x1133xh2191 mm |
| Maximum pressure force at 6 bar | 16,2 Ton |
| Minimum pressure force at 2bar | 2,9 Ton |
| Total stroke | 150 mm |
| Working stroke | 12 mm |
--
| Dimensions | 601x1133xh2328 mm |
| Maximum pressure force at 6 bar | 32,7 Ton |
| Minimum pressure force at 2bar | 5,4 Ton |
| Total stroke | 200/150 mm |
| Working stroke | 12 mm |
--
| Dimensions | 601x1133xh2795 mm |
| Maximum pressure force at 6 bar | 50,8 Ton |
| Minimum pressure force at 2bar | 8,4 Ton |
| Total stroke | 200/150 mm |
| Working stroke | 15 mm |
--
