T-CRYSTAL HOPPER
Dosage hopper for silver crystals
The T-Crystal Hopper is designed for the storage and transfer of silver crystals to the T-Lift High Special cup conveyor, which then discharges them into the crucible of a tilting furnace.
The operator sets the desired amount of crystals and starts the system: from that point on, the transfer process proceeds automatically and in sync. The crystals are smoothly conveyed to the T-Lift High Special, which transports and discharges them directly into the furnace crucible, ensuring precision and efficiency at every stage.

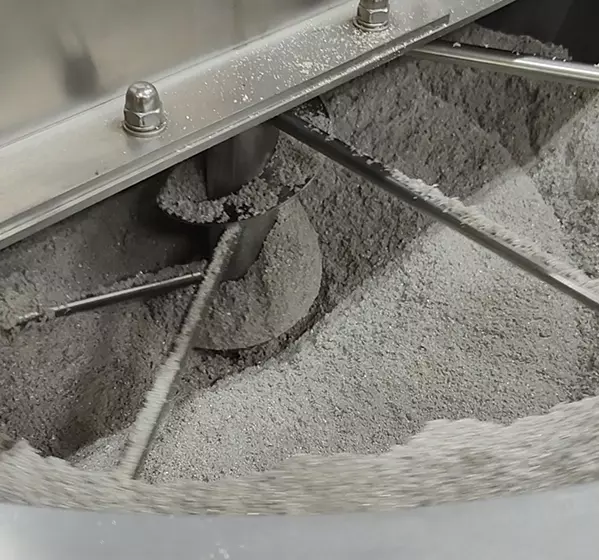

T-CRYSTAL HOPPER CONSISTS OF:
- Loading hopper.

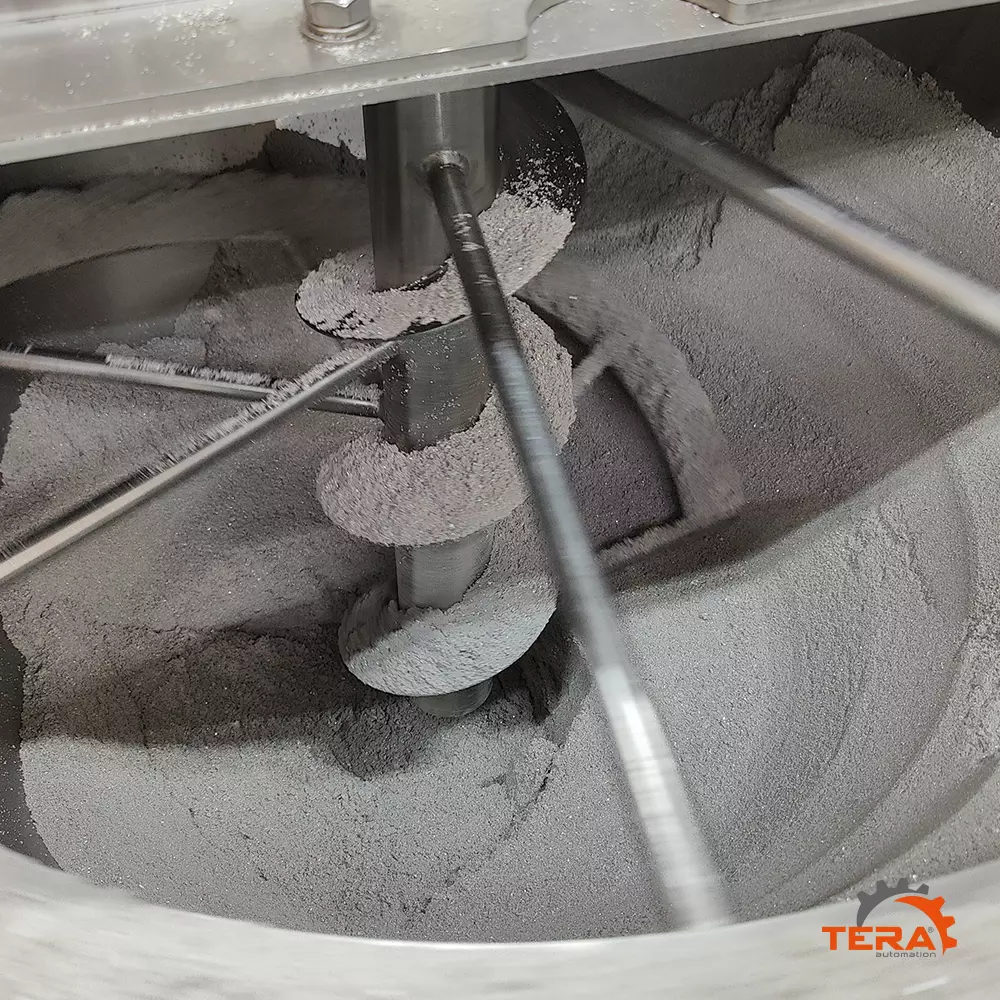

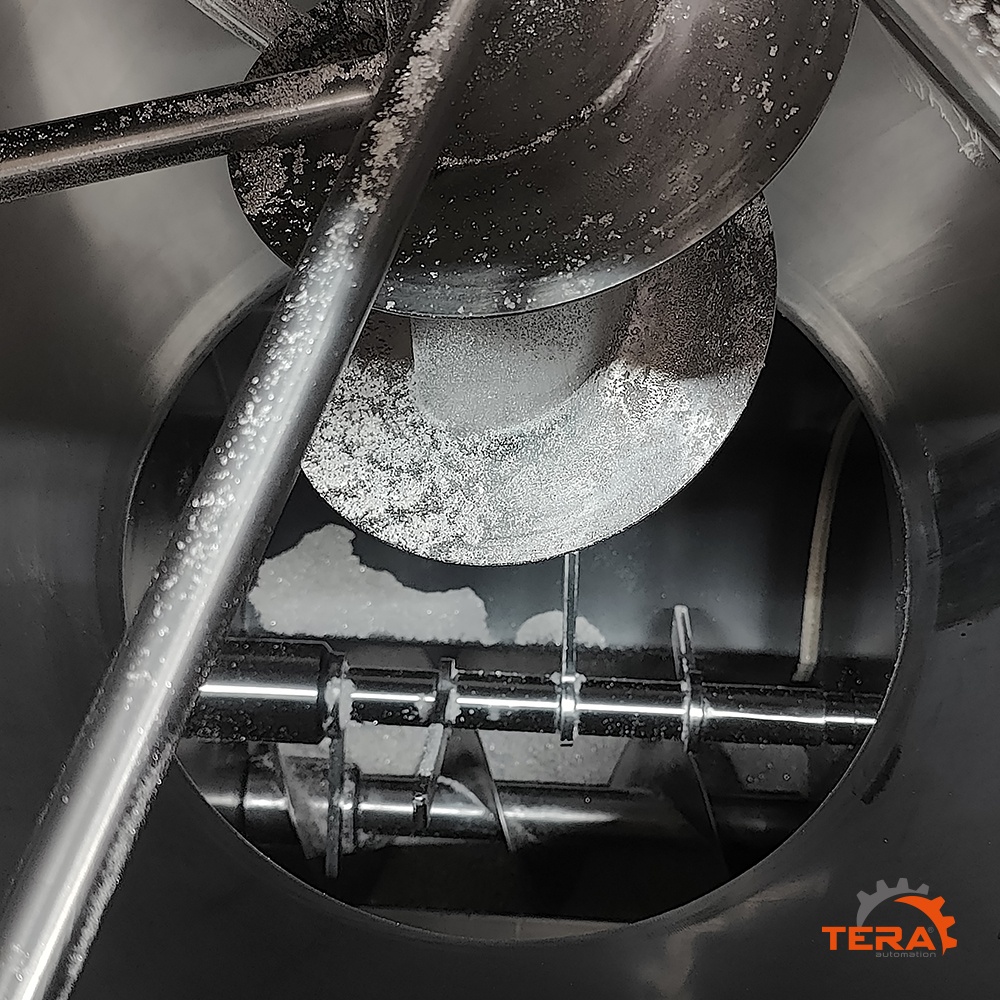

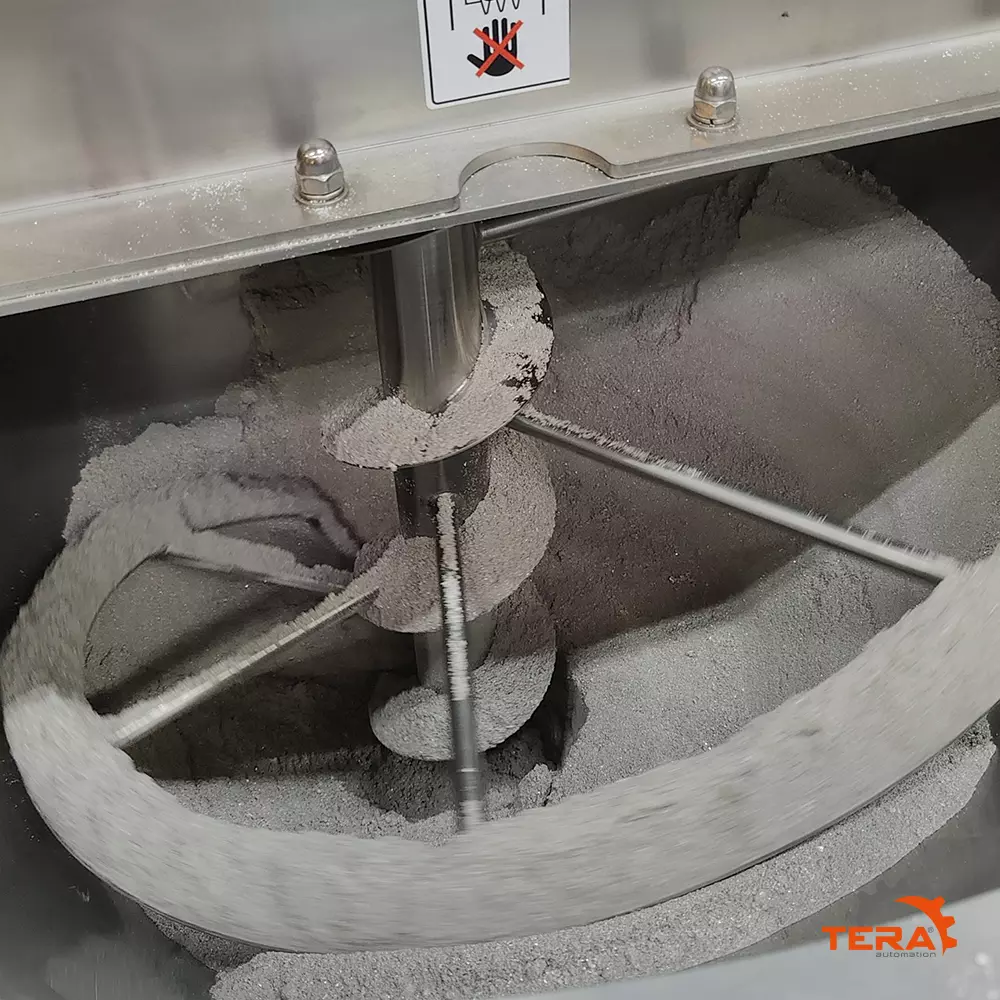

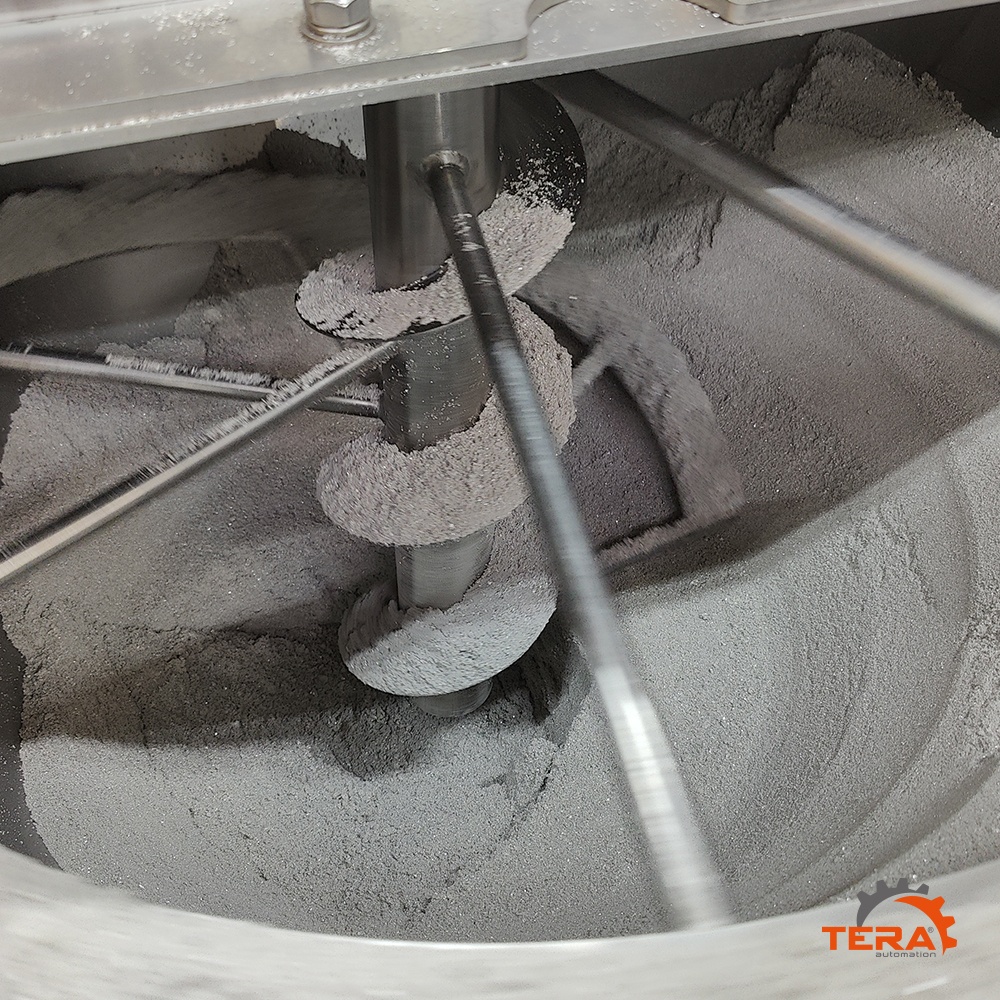

- Motorized ploughshare mixer: prevents compaction of the crystals during descent.
- Bridge breaker.

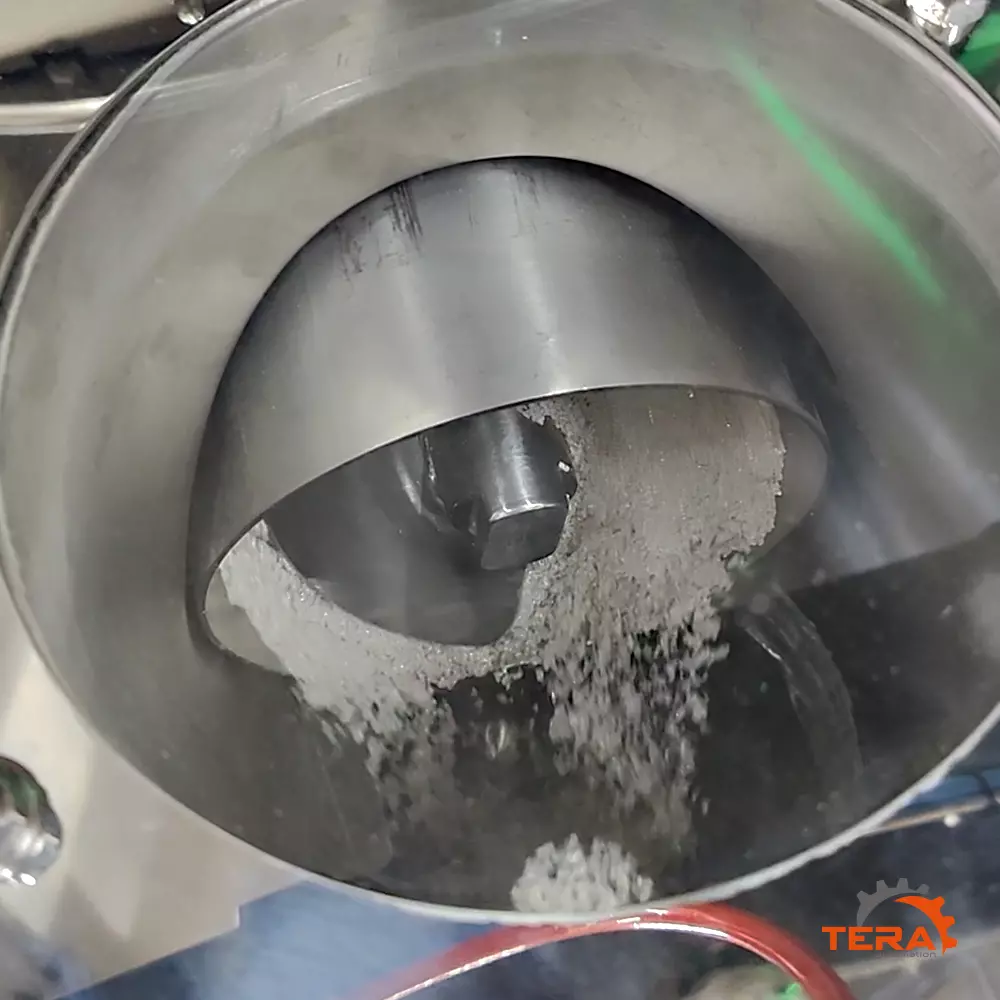

- Outlet dosing screw conveyor.
- 4 load cells with a maximum capacity of 500 kg each: measure the weight of the crystals inside the hopper and, by weight difference, calculate the amount of crystals loaded into the melting furnace.
- Vibrator: allows residual crystals deposited on the mixer to fall.
- Integrated interface and software: to set the quantity of crystals to be discharged.
- Support frame with 4 wheels and brakes.
- All components in contact with the silver crystals are made of AISI 304 stainless steel.
ADVANTAGES
THE BENEFITS OF AN INNOVATIVE, AUTOMATED SOLUTION:
01
Precision and Accuracy
The 4 load cells ensure precise measurement of the crystals, optimizing dosing in the melting furnace.
02
Efficient Transfer
The motorized ploughshare agitator and screw conveyor guarantee a continuous and smooth flow of crystals, preventing compaction and optimizing transfer.
03
Ease of Maintenance
The stainless steel dosing body is easy to disassemble, simplifying cleaning and maintenance.

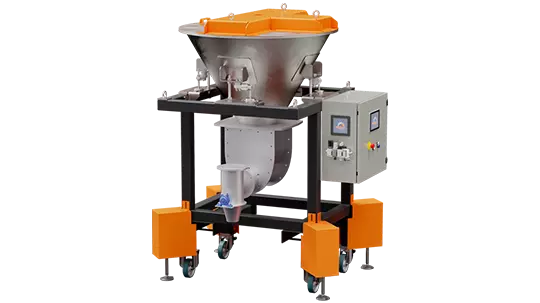

MODELS
| Dimensions: | 1130 x 1130 x h1500 mm |
| Geometric capacity: | 300 liters |
| Operating temperatures: | -5 °C ÷ +70 °C |
| Asynchronous three-phase electric motors: | 230/400 Vac (50 Hz) |
--
